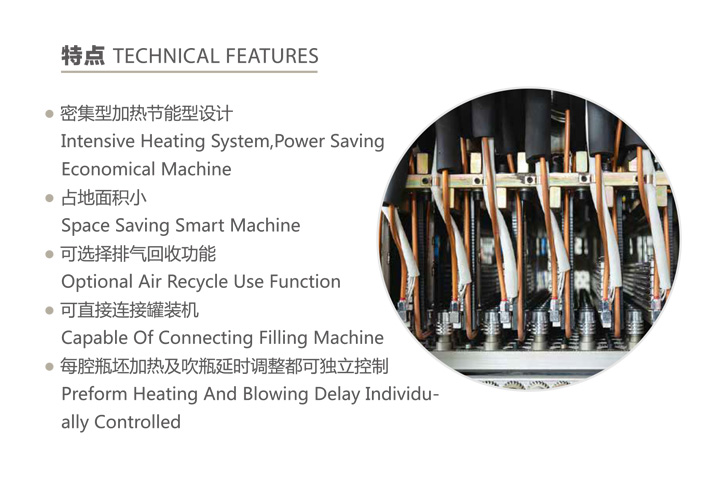

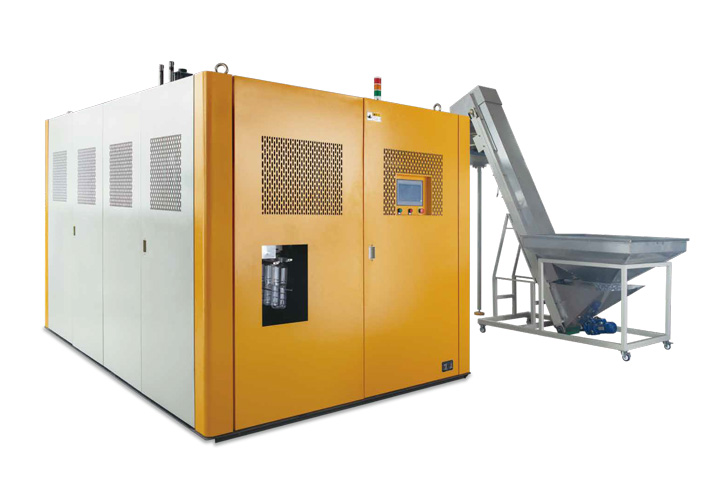

全伺服上吹600-7 PET吹瓶機機型特點TECHNICAL FEATURES

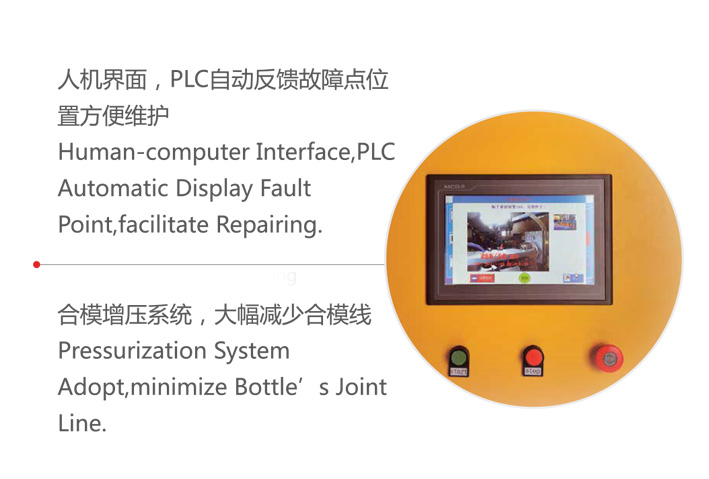

Pressurization System?Adopt,minimize Bottle's Joint Line
| Model No.型號?? | AUD600-10 | AUD1500-8 | AUD5500-4 |
| number of cavity 模穴數 | 10 | 8 | 4 |
| clamping stroke 開模行程 | 90 mm | 120 mm | 200 mm |
| production 理論產量 | 18000pcs/hr | 9000pcs/hr | 3500pcs/hr |
| total power 總裝機容量 | 100kw | 100kw | 100kw |
| actual power consumption 實際耗電量 | 55kw | 60kw | 55kw |
| pressure for blowing 允許吹氣壓力 | 35 kg | 35 kg | 35 kg |
| flow rate for blowing 吹氣用氣量 | 8m3 | 8m3 | 10m3 |
| neck diameter 允許瓶口直徑 | 26-32 mm | 26-32 mm | 40-60 mm |
| max diameter 允許瓶身直徑 | 65 mm | 90 mm | 175 mm |
| max height 允許瓶身高度 | 230 mm | 330 mm | 330 mm |
| machine size LxWxH 機器尺寸 | 4.2×2.25×2.3 m | 4.2×2.25×2.3 m | 4.2×2.25×2.3 m |
| auto loader LxWxH 上料機構 | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m |
| machine weight 機器重量 | 6000 kg | 6000 kg | 6000 kg |
