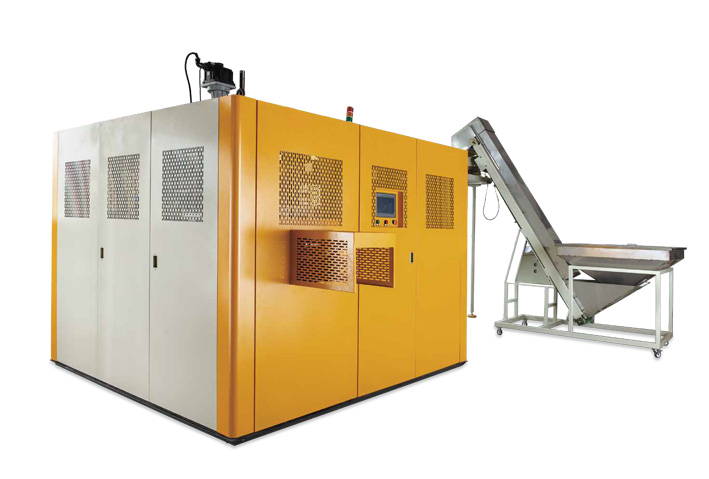

全伺服上吹600-7 PET吹瓶機機型特點TECHNICAL FEATURES

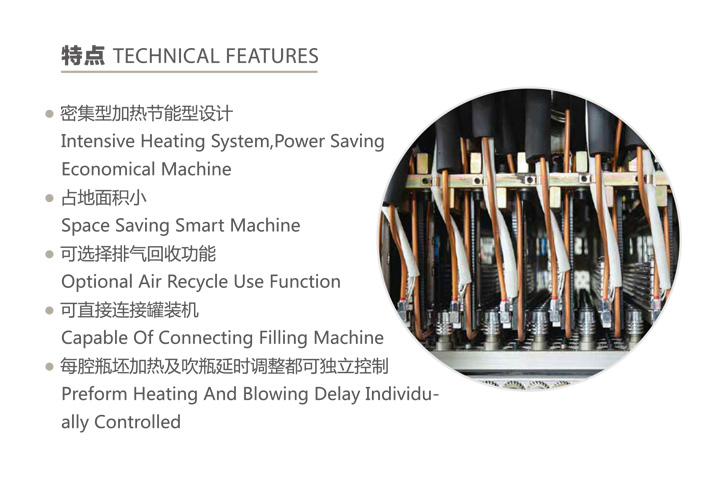

●密集型加熱節能型設計

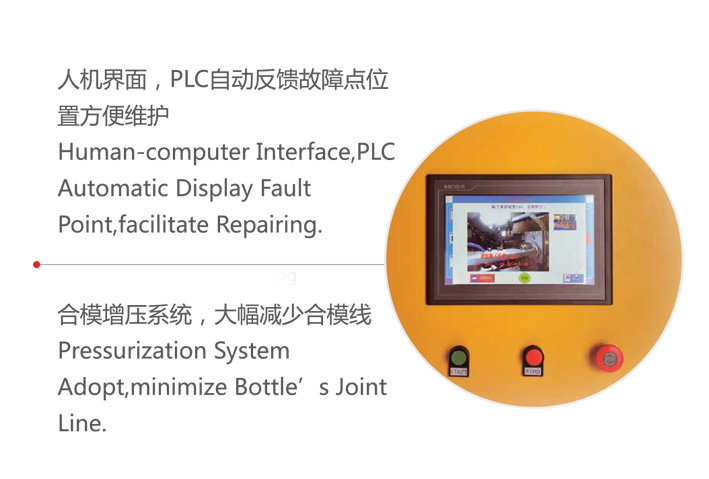

Intensive Heating System,Power SavingAdopt,minimize Bottle's Joint Line
| Model No.型號?? | AUD600-7 | AUD1500-4 | AUD2000-3 |
| number of cavity 模穴數 | 7 | 4 | 3 |
| clamping stroke 開模行程 | 90 mm | 120 mm | 130 mm |
| production 理論產量 | 14000pcs/hr | 5000pcs/hr | 3000pcs/hr |
| total power 總裝機容量 | 85kw | 85kw | 85 kw |
| actual power consumption 實際耗電量 | 40kw | 40kw | 40kw |
| pressure for blowing 允許吹氣壓力 | 35 kg | 35 kg | 35 kg |
| flow rate for blowing 吹氣用氣量 | 8m3 | 8m3 | 8m3 |
| neck diameter 允許瓶口直徑 | 26-32 mm | 26-32 mm | 26-32 mm |
| max diameter 允許瓶身直徑 | 65 mm | 90 mm | 100 mm |
| max height 允許瓶身高度 | 230 mm | 330 mm | 330 mm |
| machine size LxWxH 機器尺寸 | 3×2.25×2.3 m | 3.5×1.8×2.0 m | 2.3×2.1×2.1 m |
| auto loader LxWxH 上料機構 | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m |
| machine weight 機器重量 | 4200 kg | 4200 kg | 4200 kg |
